• Rear axle, 4.30 ratio (Standard on 4500 HG model only.)

• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.

• Drivetrain, rear-wheel drive

• Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box

• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.

• Incomplete vehicle certification

• Wheelbase, 109" (276.9 cm)

• GVWR, 14,500 lbs. (6577 kg) (Standard on 4500 HG model only.)

• Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers

• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio

• Brakes, 4-wheel antilock, front and rear disc

• Vehicle Application Truck

• Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.

• Exhaust, single outlet

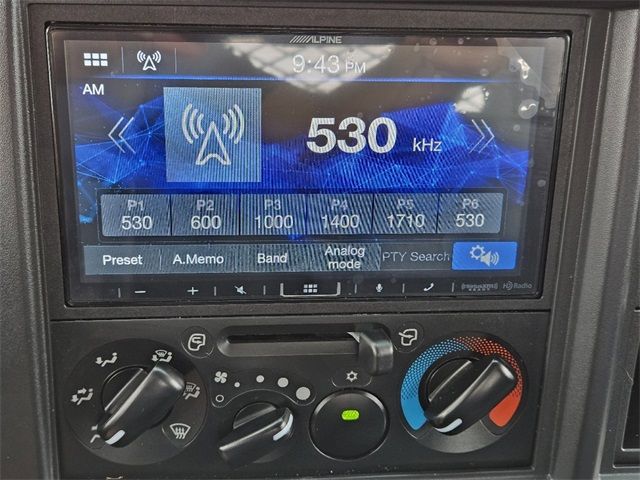

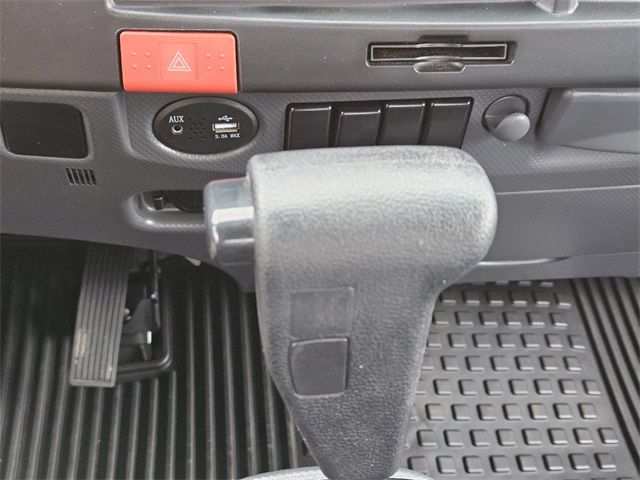

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®

• Audio system feature, 2 speakers

• Vehicle

• Number of Passenger Doors: 2

• Front Frame Rating: - TBD -

• Electrical

• Cold Cranking Amps @ 0° F (Primary): 750

• Maximum Alternator Capacity (amps): 170

• Maximum Alternator Watts: - TBD -

• Cooling System

• Total Cooling System Capacity (qts): - TBD -

• Weight Information

• Gross Axle Wt Rating - Front (lbs): 6630

• Gross Axle Wt Rating - Rear (lbs): 11020

• Curb Weight - Front (lbs): 3478

• Curb Weight - Rear (lbs): 2075

• Gross Vehicle Weight Rating Cap (lbs): 14500

• Gross Combined Wt Rating (lbs): 20500

• Suspension

• Suspension Type - Front: Semi-Elliptical Multi-Leaf Spring

• Suspension Type - Rear: Semi-Elliptical Multi-Leaf Spring

• Spring Capacity - Front (lbs): 6830

• Spring Capacity - Rear (lbs): 12900

• Axle Type - Front: Reverse Elliot I-Beam

• Axle Type - Rear: Full-Floating

• Axle Capacity - Front (lbs): 6830

• Axle Capacity - Rear (lbs): 11020

• Axle Ratio (:1) - Rear: 4.30

• Shock Absorber Diameter - Front (mm): 42.0

• Shock Absorber Diameter - Rear (mm): 42.0

• Stabilizer Bar Diameter - Front (in): 1.65

• Brakes

• Brake Type: Pwr

• Brake ABS System: 4-Wheel

• Disc - Front (Yes or ): Yes

• Disc - Rear (Yes or ): Yes

• Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -

• Rear Brake Rotor Diam x Thickness (in): - TBD -

• Tires

• Front Tire Order Code: 2TC

• Rear Tire Order Code: 3TC

• Front Tire Size: 225/70R19.5

• Rear Tire Size: 225/70R19.5

• Front Tire Capacity (lbs): 6630

• Rear Tire Capacity (lbs): 12460

• Revolutions/Mile @ 45 mph - Front: 643

• Revolutions/Mile @ 45 mph - Rear: 643

• Number Of Tires Front: 2

• Number Of Tires Rear: 4

• Wheels

• Front Wheel Size (in): 19.5 x 6.0

• Rear Wheel Size (in): 19.5 x 6.0

• Front Wheel Offset (mm): 127

• Rear Wheel Offset (mm): 127

• # of Bolt Holes - Front: 6

• # of Bolt Holes - Rear: 6

• Front Wheel Material: Steel

• Rear Wheel Material: Steel

• Front Bolt Pattern: 6 Hole JIS 8.75"

• Rear Bolt Pattern: 6 Hole JIS 8.75"

• Steering

• Steering Type: Pwr

• Steering Ratio (:1), On Center: 18.8 - 20.9

• Steering Ratio (:1), At Lock: 18.8 - 20.9

• Turning Diameter - Curb to Curb (ft): 33.5

• Turning Diameter - Wall to Wall (ft): 38.3

• Frame

• Frame Type: Ladder-Type Channel-Section

• Sect Modulus Rails Only (in³): 7.20

• Frame RBM (N/A): 316800

• Frame Strength (lbs): 44000

• Frame Thickness (in): 8.50 X 2.76 X 0.24

• Fuel Tank

• Fuel Tank Capacity, Approx (gal): 38.6

• Fuel Tank Location: Frame Rail

• Exterior Dimensions

• Wheelbase (in): 109

• Length, Overall (in): 200.5

• Width, Max w/o mirrors (in): 81.3

• Height, Overall (in): 90.9

• Overhang, Front (in): 48.4

• Overhang, Rear w/o bumper (in): 43.1

• Front Bumper to Back of Cab (in): 70.9

• Cab to Axle (in): 86.5

• Cab to End of Frame (in): 129.6

• Ground to Top of Frame (in): 33.0

• Frame Width, Rear (in): 33.5

• Ground Clearance, Front (in): 8.3

• Ground Clearance, Rear (in): 8.3

• Body Length Default Value (ft): - TBD -

• Interior Dimensions

• Passenger Capacity: 3

• Front Head Room (in): 38.40

• Front Leg Room (in): 29.50

• Front Shoulder Room (in): 70.70

• Front Hip Room (in): 67.70

• Summary

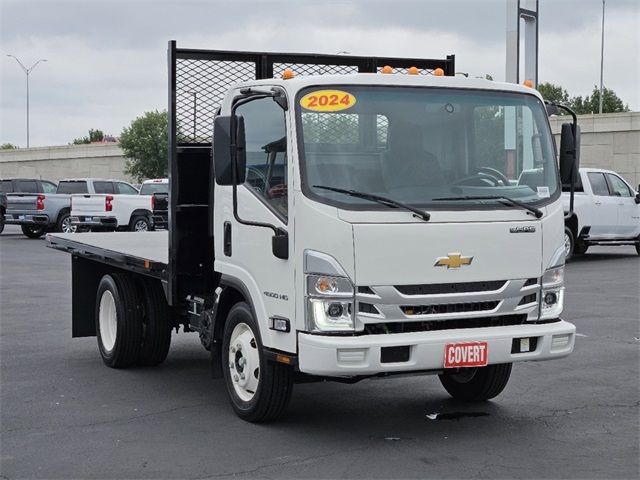

• Vehicle Name: Chevrolet 4500 HG LCF Gas

• Body Style: Regular Cab Chassis Cab

• Medium Duty Performance

• Driver Ratio: - TBD -

• Torque @ Clutch Engage (ft-lbs): - TBD -

• Static Loaded Radius (in): - TBD -

• Max Speed For Gradeability: - TBD -

• Bluetooth®

• 3rd Rear Seat

• 4WD/AWD

• Android Auto

• Apple CarPlay

• Cooled Seats

• Heated Seats

• Keyless Entry

• Sunroof/Moonroof

• Navigation System

• Rear View Camera

• Tow Hitch/Tow Package

• Cruise Control

• Daytime Running Lamps

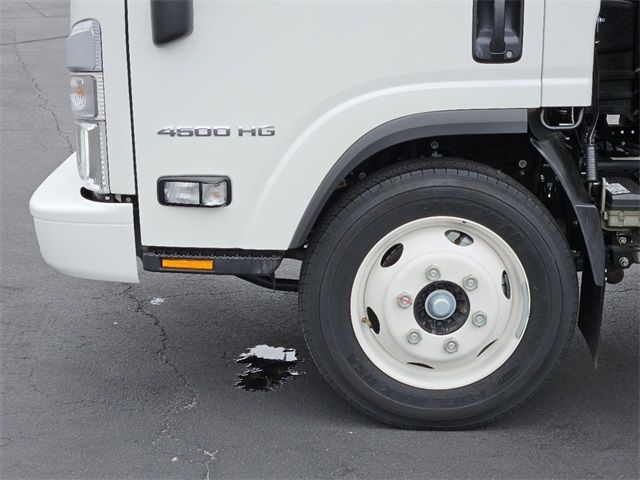

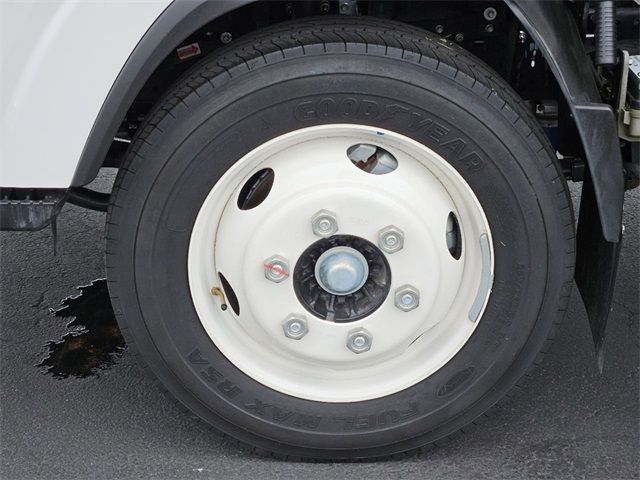

• Wheels, 19.5" x 6", K steel (Standard on 4500 HG model only.)

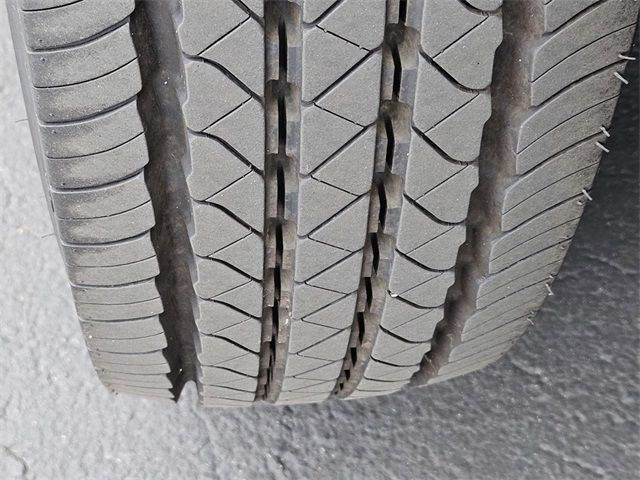

• Tires, front, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season (Standard on 4500 HG model only.)

• Tires, rear, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season (Standard on 4500 HG model only.)

• Assist steps

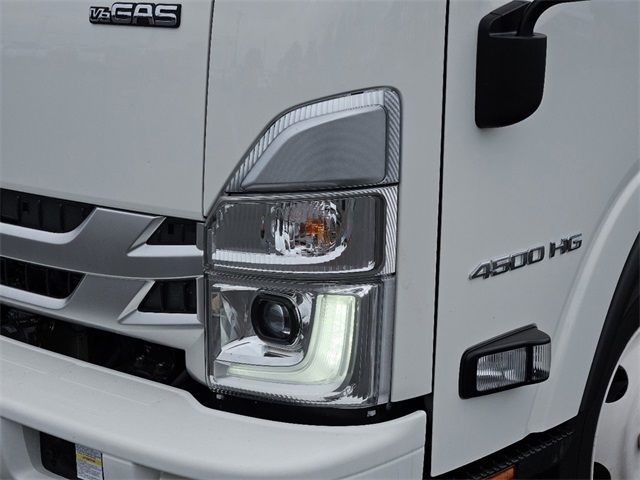

• LED Headlamps

• Grille, Silver

• Glass, tinted

• Mirror, outside left-hand and right-hand with integral convex mirrors

• Windshield wiper, pulse, wet arm

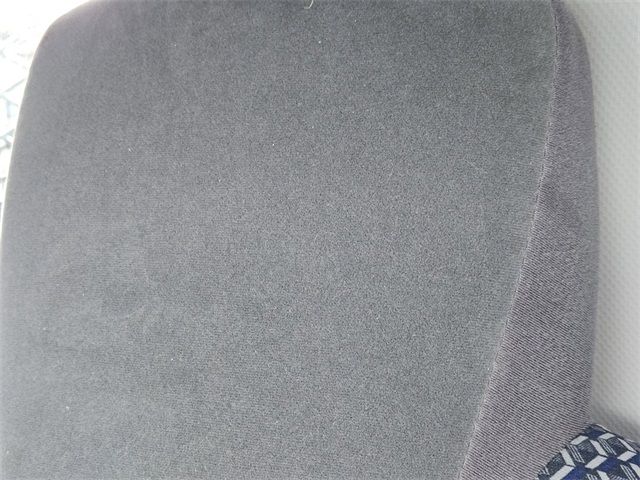

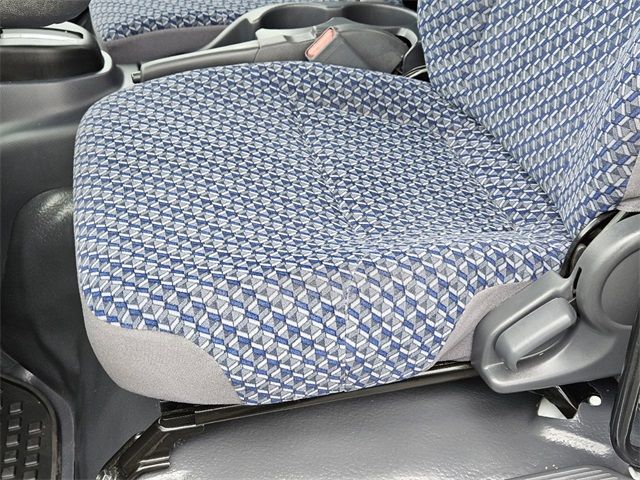

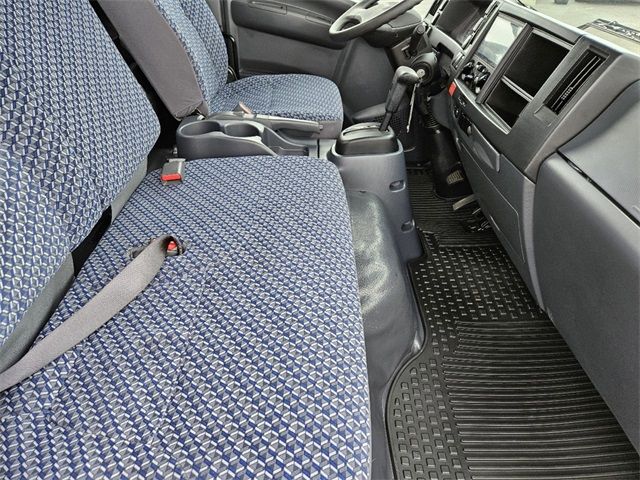

• Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat

• Seat trim, Cloth

• Cup holders

• Floor mats

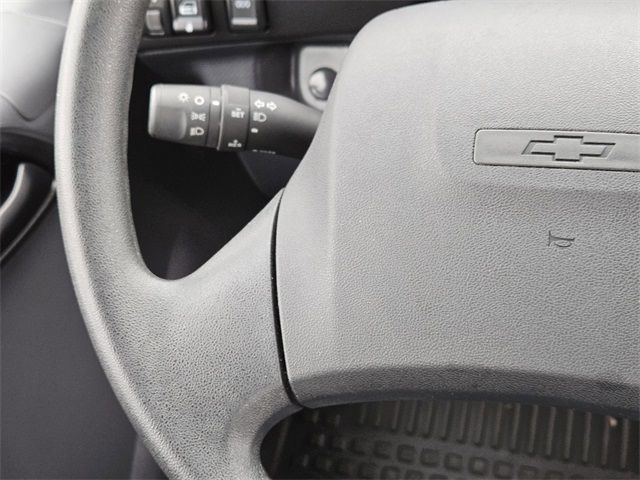

• Steering wheel, urethane

• Steering column, Tilt-Wheel

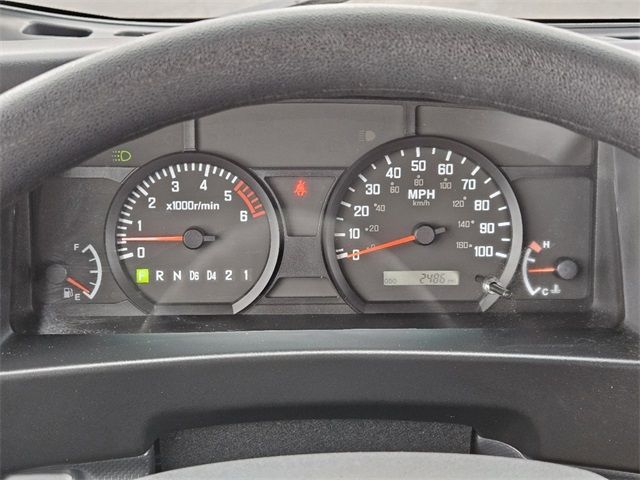

• Driver Information Center

• Windows, power

• Door locks, power

• Cruise control, electronic, automatic

• Air conditioning, single-zone manual, integral in-dash mounted

• Windshield washer bottle access on passenger side dash when passenger-side door is open

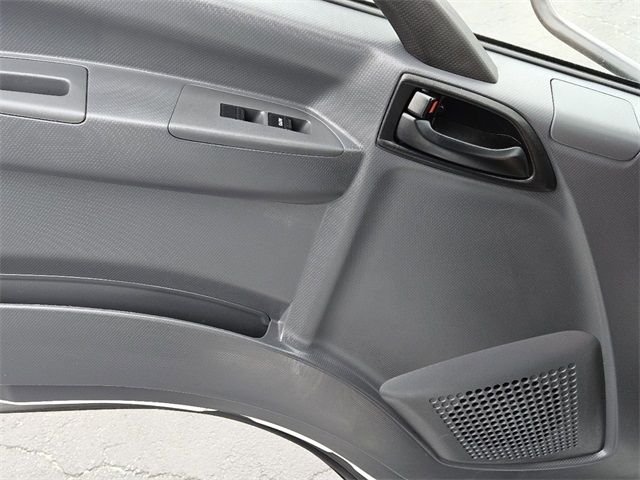

• Storage, door pockets

• Lighting, interior dome

• Storage, seatback pockets
